Keeping the railroad rolling

Analyzing the layout for good traffic flow, planning signaling systems, and building a rollingstock roster are all important considerations when designing a layout, but first the trains need to be able to roll. Initially and continuously the railroad itself needs to be its own customer, in order to support its own infrastructure. For example, railroad owned buildings must be constructed and maintained, signal systems must be tested, track must be inspected and repaired, rollingstock must be overhauled, and locomotives must be refueled.

For most layouts this is best done "off-stage"; that is to say Inferred, but not actually occurring on the layout itself. The reasoning is so that the limited space for the layout can be used entirely for modeling the railroads transport aspect. Still, you could show this on-layout in minor ways, such as by, for example, erecting scaffolding on the side of a railroad building to indicate that it is currently receiving maintenance.

On the other hand, a most interesting layout can be built that specifically features the Servicing aspect of railroading. Examples include modeling an engine servicing facility, modeling a rollingstock overhaul shop, or modeling a passenger car refreshing yard. These facilities will need to receive deliveries of consumables on a regular basis, thus generating some extra layout traffic.

Moving work trains (*.pdf)

Engine Servicing

Locomotive servicing requires a huge chunk of the limited real estate available to the modeler. Steam locomotives are especially demanding, as their facilities must include water along with fuel, and they require a dedicated building in which to perform frequent preventative maintenance (often fed from a turntable, which is a costly acquisition for the modeler). Diesels in this regard are preferable when you only want to feature (rather than dedicate the entire layout to) engine servicing, as they only require liquid fuel infrequently (which can even be delivered to them), and they can be parked and have running repairs performed outdoors.

Engine Servicing Details (*.pdf)
Tour of a shortline roundhouse area (*.pdf)
Sand and Oil Houses (*.pdf)
Servicing Steam (*.pdf booklet)
Engine Facilities you can model (*.mp4)
Locomotive Maintenance Layouts (*.pdf)
Poor Man's Railroad Backshop (*.pdf)

Rollingstock Overhauling

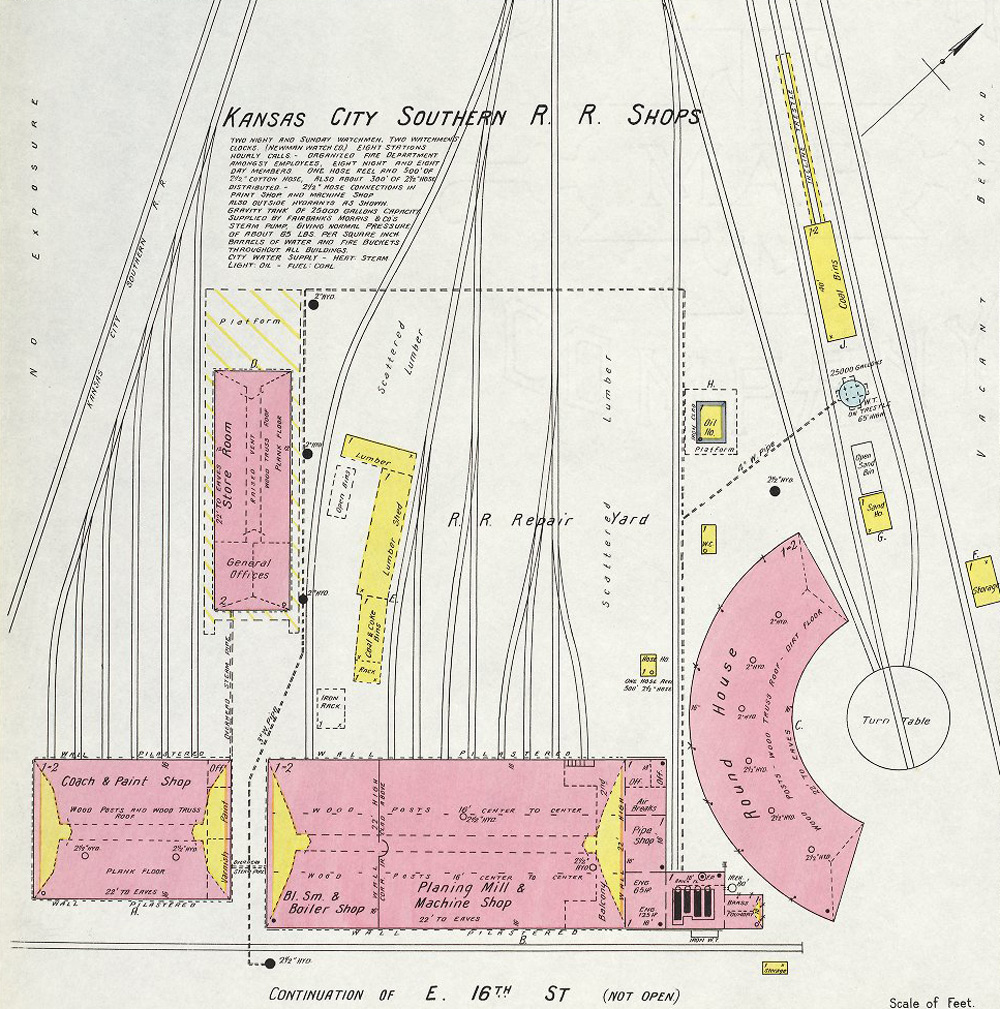

Car Shops are a necessity somewhere on the railroad, so that rollingstock can be overhauled, refurbished, and repainted. On small railroads space at the engine facility may be used instead of constructing a separate facility. Access to bays is through a "fan" [EXAMPLE] of switches (if there is sufficient space) or via a Transfer Table [EXAMPLE].

Monroe Shops (*.pdf)
Inside a Car Shop (*.pdf)

Passenger Car Refreshing

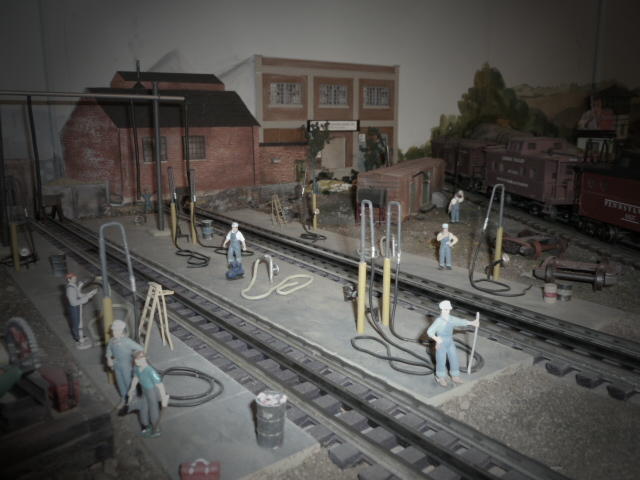

Passengers are very sensitive to minor damage and uncleanliness. For this reason railroads that transport passengers regularly clean, restock, and perform minor repairs, often in a dedicated layover yard between each run. Zephyrs [EXPLANATION] and other articulated trains use a dedicated track [EXPLANATION], where both engine and car servicing is performed. In a similar manner as busses, Rail Cars [EXPLANATION] and other self-propelled single-car units will use normal yard tracks for car refreshing, but then visit the locomotive facility when engine maintenance is required. Due to the constant movement of cars in and out, coach yards are an Excellent Theme for a model layout.

Servicing 200 Trains Daily at Sunnyside (*.pdf)
Passenger Terminals and Servicing Facilities (*.pdf)
Ice Storage Plant (*.pdf) - {older passenger car cooling systems require ice}
The Passenger Train Oriented Layout (*.pdf)
Modeling Passenger Servicing Facilities (*.pdf)
Blue Flags (*.pdf)
